P. 2

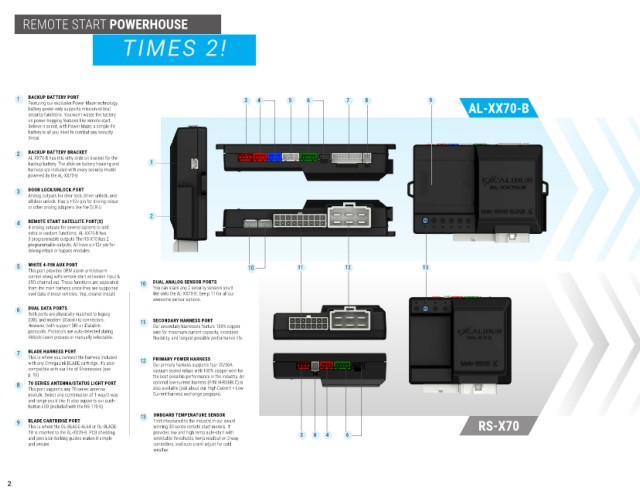

REMOTE START POWERHOUSE

                               TIMES 2!








     1  BACKUP BATTERY PORT                                   3  4      5    6         7   8               9
        Featuring our exclusive Power Maze technology,
        battery power only supports mission-critical                                                                 AL-XX70-B
        security functions. You won’t waste the battery
        on power-hogging features like remote start.
        Believe it or not, with Power Maze, a simple 9V
        battery is all you need to combat any security
        threat.
     2  BACKUP BATTERY BRACKET
        AL-XX70-B has this nifty slide on bracket for the
        backup battery. The slide on battery housing and   1
        harness are included with every security model
        powered by the AL-XX70-B.
     3  DOOR LOCK/UNLOCK PORT
        Analog outputs for door lock, driver unlock, and
        all door unlock. Has a +12v pin for driving relays
        or other analog adapters like the DLR-U
                                      2
     4  REMOTE START SATELLITE PORT(S)
        4 analog outputs for several options to add
        extra or custom functions. AL-XX70-B has
        3 programmable outputs The RS-X70 has 2
        programmable outputs. All have a +12v pin for
        driving relays or bypass modules.
     5  WHITE 4-PIN AUX PORT                                  10           11         12                  13
        This port provides OEM alarm arm/disarm
        control along with remote start activation input &
        3RD channel out. These functions are separated   10  DUAL ANALOG SENSOR PORTS
        from the main harness since they are supported   You can stack any 2 security sensors you’d
        over data in most vehicles. Yep, cleaner install.   like onto the AL-XX70-B. See p.11 for all our
                                       awesome sensor options.
     6  DUAL DATA PORTS
        Both ports are physically matched to legacy
        (DBI) and modern (iDatalink) connectors.   11  SECONDARY HARNESS PORT
        However, both support DBI or iDatalink   Our secondary harnesses feature 100% copper
        protocols. Protocols are auto-detected during   wire for maximum current capacity, increased
        Vehicle Learn process or manually selectable.  flexibility, and longest possible performance life.
     7  BLADE HARNESS PORT
        This is where you connect the harness included   PRIMARY POWER HARNESS
        with any OmegaLink BLADE cartridge. It’s also   12  Our primary harness supports four 20/30A
        compatible with our line of T-harnesses (see   vacuum sealed relays with 100% copper wire for
        p. 10)                         the best possible performance in the industry. An
     8  70 SERIES ANTENNA/STATUS LIGHT PORT  optional low-current harness (P/N: H-RS6BLC) is
        This port supports any 70 series antenna   also available (ask about our High Current > Low
        module. Select any combination of 1-way/2-way   Current harness exchange program).
        and range you’d like. It also supports our push-
        button LED (included with the RS-170-B)
                                    13  ONBOARD TEMPERATURE SENSOR
     9  BLADE CARTRIDGE PORT           First introduced to the industry in our award                                   RS-X70
        This is where the OL-BLADE-AL64 or OL-BLADE-  winning 30 series remote start models. It
        TB is inserted to the AL-XX70-B. PCB shielding   provides low and high temp auto-start with   3  8  4  6
        and precision locking guides makes it simple   selectable thresholds, temp readout on 2-way
        and secure.                    controllers, and auto-crank adjust for cold
                                       weather.


   2
   1   2   3   4   5   6   7
