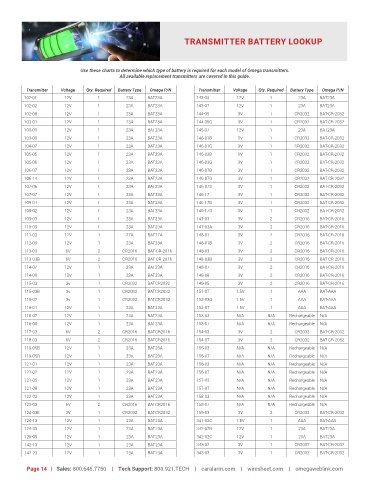

TRANSMITTER BATTERY LOOKUP

Use these charts to determine which type of battery is required for each model of Omega transmitters.
All available replacement transmitters are covered in this guide.

Transmitter Voltage Qty. Required Battery Type Omega P/N Transmitter Voltage Qty. Required Battery Type Omega P/N
102-01 12V 1 23A BAT23A 143-03 12V 1 23A BAT23A
102-02 12V 1 23A BAT23A 143-07 12V 1 23A BAT23A
102-08 12V 1 23A BAT23A 144-05 3V 1 CR2032 BAT-CR-2032
103-01 12V 1 23A BAT23A 144-05G 3V 1 CR2032 BAT-CR-2032
103-03 12V 1 23A BAT23A 145-07 12V 1 23A BAT23A
103-05 12V 1 23A BAT23A 146-01B 3V 1 CR2032 BAT-CR-2032
104-07 12V 1 23A BAT23A 146-01G 3V 1 CR2032 BAT-CR-2032
105-05 12V 1 23A BAT23A 146-03B 3V 1 CR2032 BAT-CR-2032
105-06 12V 1 23A BAT23A 146-03G 3V 1 CR2032 BAT-CR-2032
106-07 12V 1 23A BAT23A 146-07B 3V 1 CR2032 BAT-CR-2032
106-14 12V 1 23A BAT23A 146-07G 3V 1 CR2032 BAT-CR-2032
107-06 12V 1 23A BAT23A 146-07S 3V 1 CR2032 BAT-CR-2032
107-07 12V 1 23A BAT23A 146-17 3V 1 CR2032 BAT-CR-2032
109-01 12V 1 23A BAT23A 146-17B 3V 1 CR2032 BAT-CR-2032
109-02 12V 1 23A BAT23A 146-17G 3V 1 CR2032 BAT-CR-2032
109-03 12V 1 23A BAT23A 147-03 3V 2 CR2016 BAT-CR-2016
110-09 12V 1 23A BAT23A 147-03A 3V 2 CR2016 BAT-CR-2016
111-03 12V 1 27A BAT27A 148-01 3V 2 CR2016 BAT-CR-2016
112-09 12V 1 23A BAT23A 148-01B 3V 2 CR2016 BAT-CR-2016
113-03 6V 2 CR2016 BAT-CR-2016 148-03 3V 2 CR2016 BAT-CR-2016
113-03B 6V 2 CR2016 BAT-CR-2016 148-03B 3V 2 CR2016 BAT-CR-2016
114-07 12V 1 23A BAT23A 148-07 3V 2 CR2016 BAT-CR-2016
114-09 12V 1 23A BAT23A 148-08 3V 2 CR2016 BAT-CR-2016
115-03 3v 1 CR2032 BATCR2032 149-05 3V 2 CR2016 BAT-CR-2016
115-03B 3v 1 CR2032 BATCR2032 151-07 1.5V 1 AAA BAT-AAA
115-07 3v 1 CR2032 BATCR2032 152-03G 1.5V 1 AAA BAT-AAA
116-01 12V 1 23A BAT23A 152-07 1.5V 1 AAA BAT-AAA
116-02 12V 1 23A BAT23A 153-03 N/A N/A Rechargeable N/A
116-08 12V 1 23A BAT23A 153-07 N/A N/A Rechargeable N/A
117-03 6V 2 CR2016 BATCR2016 154-03 3V 2 CR2032 BAT-CR-2032
118-03 6V 2 CR2016 BATCR2016 154-07 3V 2 CR2032 BAT-CR-2032
119-05B 12V 1 23A BAT23A 155-03 N/A N/A Rechargeable N/A
119-05R 12V 1 23A BAT23A 155-07 N/A N/A Rechargeable N/A
121-01 12V 1 23A BAT23A 156-03 N/A N/A Rechargeable N/A
121-02 12V 1 23A BAT23A 156-07 N/A N/A Rechargeable N/A
121-05 12V 1 23A BAT23A 157-03 N/A N/A Rechargeable N/A
121-08 12V 1 23A BAT23A 157-07 N/A N/A Rechargeable N/A
122-03 12V 1 23A BAT23A 158-03 N/A N/A Rechargeable N/A
123-03 6V 2 CR2016 BATCR2016 158-07 N/A N/A Rechargeable N/A
124-03E 3V 1 CR2032 BATCR2032 159-03 3V 2 CR2032 BAT-CR-2032
124-13 12V 1 23A BAT23A 341-02C 1.5V 1 AAA BAT-AAA
124-33 12V 1 23A BAT23A 342-02B 12V 1 23A BAT23A
128-09 12V 1 23A BAT23A 342-02C 12V 1 23A BAT23A
142-13 12V 1 23A BAT23A 343-02 3V 1 CR2032 BAT-CR-2032
142-23 12V 1 23A BAT23A 343-03 3V 1 CR2032 BAT-CR-2032
