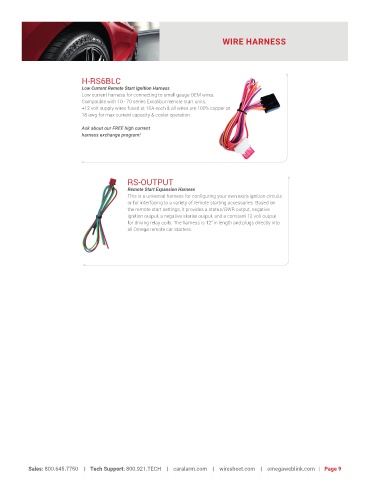

Page 9 - Accessories_Catalog_2024
P. 9
WIRE HARNESS
H-RS6BLC
Low Current Remote Start Ignition Harness
Low current harness for connecting to small gauge OEM wires.
Compatible with 10 - 70 series Excalibur remote start units.
+12 volt supply wires fused at 10A each & all wires are 100% copper at
+12 v olt supply wir es fused at 10A each & all wir es ar e 100% copper at
18 awg for max current capacity & cooler operation.
Ask about our FREE high current
harness exchange program!
RS-OUTPUT
Remote Start Expansion Harness
This is a universal harness for configuring your own extra ignition circuits
or for interfacing to a variety of remote starting accessories. Based on
the remote start settings, it provides a status/GWR output, negative
ignition output, a negative starter output, and a constant 12 volt output
for driving relay coils. The harness is 12” in length and plugs directly into
all Omega remote car starters.
