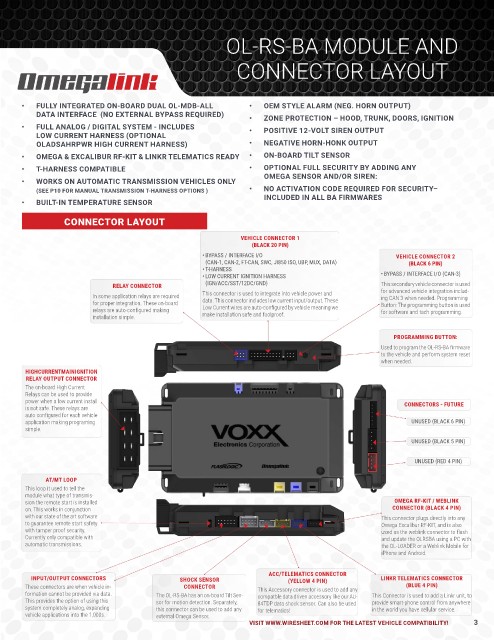

OL-RS-BA MODULE AND

CONNECTOR LAYOUT

• FULLY INTEGRATED ON-BOARD DUAL OL-MDB-ALL • OEM STYLE ALARM (NEG. HORN OUTPUT)
DATA INTERFACE (NO EXTERNAL BYPASS REQUIRED) • ZONE PROTECTION – HOOD, TRUNK, DOORS, IGNITION
• FULL ANALOG / DIGITAL SYSTEM - INCLUDES • POSITIVE 12-VOLT SIREN OUTPUT
LOW CURRENT HARNESS (OPTIONAL
OLADSAHRPWR HIGH CURRENT HARNESS) • NEGATIVE HORN-HONK OUTPUT
• OMEGA & EXCALIBUR RF-KIT & LINKR TELEMATICS READY • ON-BOARD TILT SENSOR
• T-HARNESS COMPATIBLE • OPTIONAL FULL SECURITY BY ADDING ANY
OMEGA SENSOR AND/OR SIREN:
• WORKS ON AUTOMATIC TRANSMISSION VEHICLES ONLY
(SEE P10 FOR MANUAL TRANSMISSION T-HARNESS OPTIONS ) • NO ACTIVATION CODE REQUIRED FOR SECURITY–
INCLUDED IN ALL BA FIRMWARES
• BUILT-IN TEMPERATURE SENSOR
CONNECTOR LAYOUT

VEHICLE CONNECTOR 1
(BLACK 20 PIN)
• BYPASS / INTERFACE I/O VEHICLE CONNECTOR 2
(CAN-1, CAN-2, FT-CAN, SWC, JI850 ISO, UBP, MUX, DATA) (BLACK 6 PIN)
• T-HARNESS
• LOW CURRENT IGNITION HARNESS • BYPASS / INTERFACE I/O (CAN-3)
RELAY CONNECTOR (IGN/ACC/SST/12DC/GND) This secondary vehicle connector is used
In some application relays are required This connector is used to integrate into vehicle power and for advanced vehicle integration includ-
ing CAN 3 when needed. Programming
for proper integration. These on-board data. This connector includes low current input/output. These Button: The programming button is used
relays are auto-configured making Low Current wires are auto-configured by vehicle meaning we for software and tach programming.
installation simple. make installation safe and foolproof.

PROGRAMMING BUTTON:
Used to program the OL-RS-BA firmware
to the vehicle and perform system reset
when needed.
HIGH CURRENT MAIN IGNITION
RELAY OUTPUT CONNECTOR
The on-board High Current
Relays can be used to provide
power when a low current install CONNECTORS - FUTURE
is not safe. These relays are
auto configured for each vehicle
application making programing UNUSED (BLACK 6 PIN)
simple.
UNUSED (BLACK 5 PIN)

UNUSED (RED 4 PIN)

AT/MT LOOP
This loop it used to tell the
module what type of transmis-
sion the remote start is installed OMEGA RF-KIT / WEBLINK
on. This works in conjunction CONNECTOR (BLACK 4 PIN)
with our state of the art software This connector plugs directly into any
to guarantee remote start safety Omega Excalibur RF-KIT, and is also
with tamper proof security. used as the weblink connector to flash
Currently only compatible with and update the OLRSBA using a PC with
automatic transmissions. the OL-LOADER or a Weblink Mobile for
iPhone and Android.

ACC/TELEMATICS CONNECTOR
INPUT/OUTPUT CONNECTORS SHOCK SENSOR (YELLOW 4 PIN) LINKR TELEMATICS CONNECTOR
These connectors are when vehicle in- CONNECTOR This Accessory connector is used to add any (BLUE 4 PIN)
formation cannot be provided via data. The OL-RS-BA has an on-board Tilt Sen- compatble data driven accessory like our AU- This Connector is used to add a Linkr unit, to
This provides the option of using this sor for motion detection. Separately, 84TDP data shock sensor. Can also be used provide smart-phone control from anywhere
system completely analog, expanding this connector can be used to add any for telematics! in the world you have cellular service.
vehicle applications into the 1,000s. external Omega Sensor.
