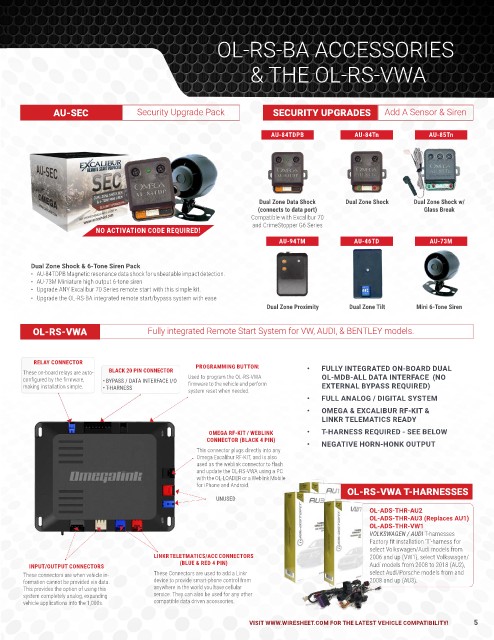

Page 5 - OmegaLink_Catalog_2022

OL-RS-BA ACCESSORIES

& THE OL-RS-VWA

AU-SEC Security Upgrade Pack SECURITY UPGRADES Add A Sensor & Siren

AU-84TDPB AU-84Tn AU-85Tn

Dual Zone Data Shock Dual Zone Shock Dual Zone Shock w/
(connects to data port) Glass Break
Compatible with Excalibur 70
and CrimeStopper G6 Series
NO ACTIVATION CODE REQUIRED!
AU-94TM AU-46TD AU-73M

Dual Zone Shock & 6-Tone Siren Pack
• AU-84TDPB Magnetic resonance data shock for unbeatable impact detection.
• AU-73M Miniature high output 6-tone siren
• Upgrade ANY Excalibur 70 Series remote start with this simple kit.
• Upgrade the OL-RS-BA integrated remote start/bypass system with ease
Dual Zone Proximity Dual Zone Tilt Mini 6-Tone Siren

OL-RS-VWA Fully integrated Remote Start System for VW, AUDI, & BENTLEY models.

RELAY CONNECTOR PROGRAMMING BUTTON:
These on-board relays are auto- BLACK 20 PIN CONNECTOR • FULLY INTEGRATED ON-BOARD DUAL
configured by the firmware, • BYPASS / DATA INTERFACE I/O Used to program the OL-RS-VWA OL-MDB-ALL DATA INTERFACE (NO
making installation simple. • T-HARNESS firmware to the vehicle and perform EXTERNAL BYPASS REQUIRED)
system reset when needed.
• FULL ANALOG / DIGITAL SYSTEM
• OMEGA & EXCALIBUR RF-KIT &
LINKR TELEMATICS READY
OMEGA RF-KIT / WEBLINK • T-HARNESS REQUIRED - SEE BELOW
CONNECTOR (BLACK 4 PIN) • NEGATIVE HORN-HONK OUTPUT
This connector plugs directly into any
Omega Excalibur RF-KIT, and is also
used as the weblink connector to flash
and update the OL-RS-VWA using a PC
with the OL-LOADER or a Weblink Mobile
for iPhone and Android.
OL-RS-VWA T-HARNESSES
UNUSED
OL-ADS-THR-AU2
OL-ADS-THR-AU3 (Replaces AU1)
OL-ADS-THR-VW1
VOLKSWAGEN / AUDI T-harnesses
Factory fit installation ‘T’-harness for
select Volkswagen/Audi models from
LINKR TELETMATICS/ACC CONNECTORS 2006 and up (VW1), select Volkswagen/
(BLUE & RED 4 PIN) Audi models from 2008 to 2018 (AU2),
INPUT/OUTPUT CONNECTORS
These connectors are when vehicle in- These Connectors are used to add a Linkr select Audi/Porsche models from and
formation cannot be provided via data. device to provide smart-phone control from 2008 and up (AU3).
This provides the option of using this anywhere in the world you have cellular
system completely analog, expanding service. They can also be used for any other
vehicle applications into the 1,000s. compatible data driven accessories.

VISIT WWW.WIRESHEET.COM FOR THE LATEST VEHICLE COMPATIBILITY! 55
